WOVEN GEOTEXTILES

Woven Geotextiles are ideal for Separation, Reinforcement, Filtration, Erosion control and Drainage and meet specific target values for strength and tensional stiffness for effective reinforcement. They have a high resistance to installation damage and are designed to offer waterflows for the most demanding applications with pore size distributions that ensure effective filtration throughout their service life.

Geotec 90 Geotextile    Drainage Filter & Seperation Layer

Geotec 90 is a geotextile membrane manufactured from extruded polypropylene tapes which are resistant to all naturally occurring soil acids and alkalis and unaffected by bacteria and fungi. For use as a drainage filter and separator in all types of civil engineering, building and landfill projects. Geotec 90, being a woven geotextile, gives high tensile strength and is particularly suitable for use in separation layers.

Alderway 90 Geotextile  Data Sheet      Separator Fabric

Alderway 90 is a woven polypropylene geotextile suitable for use as a basic separator fabric in a wide range of civil engineering applications. Alderway 90 is commonly used at the base of major highway schemes and large paved areas such as car parks. The main purpose of this geotextile is to prevent the loss of construction aggregates into the underlying soil.

Rhyno Woven Geotextile    For Roadways         Data Sheet

All roll sizes 4.5 mts x 100 mts. Already proven across millions of square metres in the UK, Rhyno woven geotextile R reduces the degradation of any surface that relies on an aggregate sub base by distributing loads more evenly and reducing rutting. In addition, due to its resistance to all naturally occurring soil acids and alkalis, Rhyno woven geotextiles can be relied upon to continue performing underground for many years.

NONWOVEN GEOTEXTILES

Our range of nonwoven geotextiles complements our portfolio of woven geosynthetics and enables us to address a more diverse variety of civil engineering applications.

The nonwoven grades are ideal for use in Sustainable Urban Drainage Systems (SUDS), in attenuation systems for both infiltration and membrane protection.

The pore size of the geotextile is small enough to control the particle movement of the soil, but large enough to avoid clogging and maintain waterflow by initiating a bridging zone to promote natural soil filtration.

Applications - Roads, civil engineering, reinforcement, separation, filtration, erosion control, drainage, embankments, car parks, construction.

Terram 1000 Geotextile   Ground Stabilisation & Drainage    Data Sheet

Terram standard geotextiles enhance the performance and design life of granular layers by providing the filtration and separation functions. Typical uses for Terram standard geotextiles include ground stabilisation (between the sub-base and subgrade) and around drainage materials : Terram filters/separators are used extensively in the construction of: Paved and unpaved roads , Railways , Car parks and hardstandings , Cycleways and footpaths , SuDS installations , Green roofs .

Geotec 1000 Geotextile   High Performance Filter Membrane

Geotec 1000 is a general-purpose non-woven heat-treated geotextile for use as a drainage filter and separator in all types of civil engineering, building and landfill projects. Geotec 1000 is used below access roads (both temporary and permanent) to create a firm base on which to place the crushed stone foundation layer. Geotec 1000 is used to line drainage trenches to prevent the fine soil particles from blocking the filter stone. The non-woven geotextile is a high performance filter that will allow all the water through whilst at the same time preventing the passage of soil particles.

Geotec GP Geotextile   Data Sheet       ORDER LINE 0800 047 6775

Geotec GP  is a mechanically bonded nonwoven geotextile, with market established technical and hydraulic properties to address everyday, industry requirements of separation and filtration. Geotec GP  is an effective separator beneath selected granular materials, and for lining french or narrow trench drains. The main purpose of this geotextile is to prevent the loss of construction aggregates into the underlying soil .

Ekotex 07 Non Woven Geotextile  Roadways , Car Parks , Sportsgrounds

The Ekotex Non-Woven Geotextile  is commonly specified as  separation, protection, filtration and drainage geotextile and regularly feature within in Engineering department’s technical recommendations. Ekotex is the non woven of choice throughout reinforced working platforms, piling mats and gabion walls.    Data Sheet

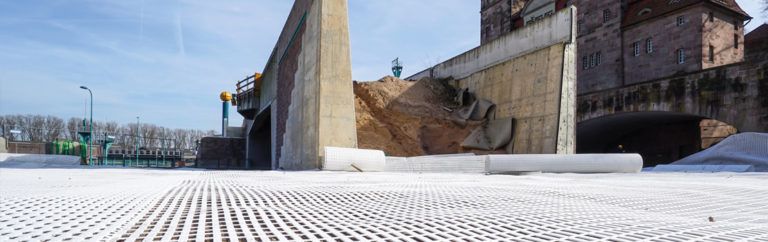

HIGH STRENGTH GEOGRIDS

Our range of biaxial geogrids complements our portfolio of woven and nonwoven geosynthetics and enables us to address a more diverse variety of civil engineering applications.

Biaxial geogrids provide ground stabilisation and reinforcement in a wide range of civil engineering projects. Through the interlock mechanism, the geogrid is specifically designed to control movement of aggregate materials.

• Reduction in the quantity of fill material required
• Effective reinforcement and soil confinement
• High tensile strength with low elongation
• Cost effective design component
• Available in 3.95 x 50mt rolls
• Applications - Roads, civil engineering, reinforcement, separation, filtration, erosion control, drainage, embankments, car parks, construction

Secugrid 30/30   High Strength Geogrid for Ground Reinforcement    Data Sheet

Secugrid 30/30 is a biaxially orientated high strength geogrid.  Geogrid is designed for use in civil engineering projects where good ground reinforcement or stabilisation is required.  Secugrid 30/30 has a proven track record as being ideal for ground reinforcement or stabilisation.

Secugrid 40/40 High Strength Geogrid for Ground Reinforcement     Data Sheet

Secugrid 40/40 is a biaxially orientated high strength geogrid designed for use in civil engineering projects that demand good ground reinforcement or stabilisation. Secugrid 40/40 geogrids have a long established track record to be ideal for ground reinforcement or stabilisation.

Interlock Geogrids    20/20       30/30        40/40   Data Sheet

Interlock geogrids are available in a various biaxial configuration and can also be supplied as a composite material laminated to a non woven geotextile in the form of Interlock 30G.Interlock is a biaxial extruded polypropylene geogrid. Interlock geogrids are designed for soil stabilisation and reinforcement applications. The installation of Interlock within the granular material will increase sub base performance and bearing capacity and reduce the thickness of the granular layers.

Also available : - Secugrid 20/20 , Ecogrid Securagrid SS20 , SS30 & SS40 , Lotrak 20/20S , Lotrak 30/30S , Lotrak 40/40S , Gridforce Geogrids , Combigrid .

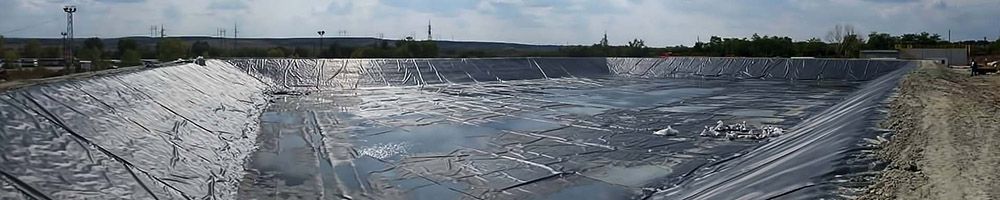

GEOMEMBRANE LINERS

Geomembranes are the most widely used products for solid waste containment (such as landfill liners), mining and water containment applications.

The highest quality resins are used to manufacture the widest selection of high-density polyethylene (HDPE) and linear low-density polyethylene (LLDPE) geomembrane products . Available in either a smooth or textured single or double-sided surface.

Geomembranes have proven to be far more effective than traditional products such as concrete, asphalt and compacted clay. They display a wide range of physical, mechanical and chemical resistance properties protecting our environment and water resources.

HDPE Geomembrane Liner  ( High Density Polyethylene )      Data Sheet

HDPE smooth geomembranes are the preferred products for lining projects requiring low permeability, exceptional chemical and ultraviolet resistance properties, which makes them extremely cost-effective for many applications, such as: Solid Waste Landfills, Hazardous Waste Landfills and  C & D Landfills ,  Animal Waste Containment , PowerPlants , Aquaculture , Concrete Tank Liners  .

LLDPE Smooth Geomembrane  ( Linear Low Density Polyethylene )

LLDPE smooth geomembranes are designed for waste containment applications that require greater flexibility and elongation performance. LLDPE superior tensile properties make LLDPE smooth geomembrane liners the perfect solution for applications in which flexibility and elongation are most important, such as Solid Waste Landfills , Hazardous Waste Landfills and C & D Landfills , Mining , Industrial and municipal water and wastewater treatment .

Alderprufe Tuflex Geomembrane      Pond Liner & Gas membrane

Alderprufe Tuflex geomembranes are used as liners and capping to contain both the gas and liquids produced by a landfill operation. The multiaxial strain qualities of Alderprufe Tuflex are so good that the geomembrane will resist out of plane forces caused by subsidence which occurs with differential waste consolidation and unstable site substrates Alderprufe Tuflex possess exceptional flexibility, tear and puncture resistance qualities for all water containment projects, even at very low temperatures. Ornamental ponds and water storage lakes used in landscaping and irrigation projects utilise the special attributes of the Alderprufe Tuflex geomembrane.     Data Sheet

The flexibility of Alderprufe Tuflex geomembranes ensures that most ponds, ditches, lagoons, lakes and dams can be lined including those with inherently complex shapes. The exceptionally wide seaming temperature window ensures a reliable weld is achieved in most weather conditions. Fluctuations in temperature are not as critical as they are with other geomembranes.

We can make up pond liners to your specific requirements and exact size , to enable you to place the liner into the pond in one easy step . All we require are the measurements of the pond to be lined : - depth -width & length , please call on 0800 047 6775 with any questions and your specific requirements .

Alderprufe HC Geomembrane    Hydrocarbon Resistant Membrane

Alderprufe HC Geomembrane has a proven track record as a barrier membrane on gas contaminated and hydrocarbon contaminated brownfield sites. Alderprufe HC Geomembrane combines strength with flexibility enabling high levels of stress/crack resistance to be achieved together with excellent bi-axial load absorption characteristics. Alderprufe HC Geomembrane is a high quality single layer HDPE membrane and is suitable for use as a barrier membrane on brownfield sites that require protection from dangerous contaminants such as hydrocarbons and methane, together with excellent damp proofing characteristics.

Due to its high puncture and impact resistance HC Geomembrane generally requires no protective screed or boarding when laying reinforced concrete above it. Alderprufe HC Geomembrane has been designed to exhibit superior welding properties when compared to conventional materials. High quality welding can be performed in a wide range of climate conditions. The material can be welded with one of three welding systems,

Suitable for use on hydrocarbon contaminated sites , High Puncture & Tear Resistance , Excellent Chemical Resistance , Excellent Welding Properties , Low Permeability to Hydrocarbon Gases .

Visqueen Ultimate VOC BLOK    Data Sheet     Hydrocarbon Barrier

Visqueen Ultimate VOC BLOK is a flexible membrane designed to comply with current guidance on Volatile Organic Compounds (VOCs) and ground gases. Manufactured using Visqueen’s advanced barrier technology and drawing on extensive knowledge and expertise in gas protection, Visqueen has developed a new flexible barrier membrane suitable in brownfield applications that are affected by aggressive chemicals such as Benzene, Toluene, Ethyl Benzene and Xylene (BTEX).

The product is available in large roll formats to minimise jointing and quick installation times. The membrane is grey and black and 2.44m x 41m x 1mm (100m.), in single wound roll format and packaged in a blue outer wrap. The membrane should be installed grey side up.

GABION BASKETS

Galvanised Box Gabions    Rectangular Units made to order

Call for price   0800 047 6775

Box gabions consist of rectangular units, fabricated from a double twist, hexagonal mesh of soft annealed, heavily galvanised wire. The wire quality and the galvanising meet all international specifications. The mesh panels are reinforced at all edges with wires of larger diameter than that used for manufacturing the mesh, to strengthen them and facilitate construction. Gabions are divided into cells by fitting diaphragms which have the function of reinforcing the structure and making assembly and erection easier.

Available in woven and welded. Can also be PVC coated on request.

Once assembled, the mesh gabions are filled with stone or rock and the lid secured to form a monolithic structure in accordance with the recommended installation procedures.

Gabion Mattresses   Erosion Control System

Call for price   0800 047 6775

Gabion mattresses are box units where the plan area is large compared to its height. Each unit is subdivided into compartments normally to give cells 2mx1m in plan.

Typically standard sizes are 3mx2mx0.3m and supplied in a Zinc or PVC/Zinc coated wire. The units are laid on the bed of rivers. Once filled with stone or rock and the lid closed, they form a blanket erosion control system.  Gabion Mattresses are also used to provide underscour protection to retaining structures.
